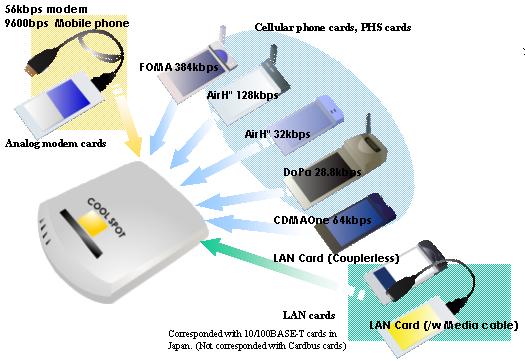

Wireless LAN router NAPS-02 for COOLSPOT recognises inserted
PC card and construct the suitable hot spot by the PC card automatically,
so that any configuration is unnecessary.
When required an original setting, an additional setting can be done
from the maintenance web screen. At most 10 cards information can be managed.
(NOTE: any LAN card is counted as same one information. )
Data communication card | LAN
card | Built-in LAN port
Data communication card (Cards
list | Instruction)
Information which accompanies initialized dial-up number,
account, and other cards is automatically loaded. Please see here about
- For instance, a dial-up number only for b-mobile, the account for
b-mobile, and the compression proxy setting, etc. are automatically
loaded for b-mobile.
LAN card (Cards list
Internet Protocol address that NAPS-02 distributes to wireless LAN side
with DHCP is automatically changed according to information distributed
from the DHCP server on cable LAN side. Please see here about correspondence
Though it is set to the private address which starts by wireless LAN
side 192.168 usually, Cable, LAN, side, Internet Protocol address, start,
private address, wireless, LAN, side, start, private address, automatic,
change.Therefore, batting Internet Protocol address in LAN can be constructed
and the customer construct the hot spot consciously.
Built-in LAN port (Instruction)
It is basically the same as above-mentioned "LAN card sticks"
being not able to use built-in LAN port to connect client PC.
